EDIS-DL

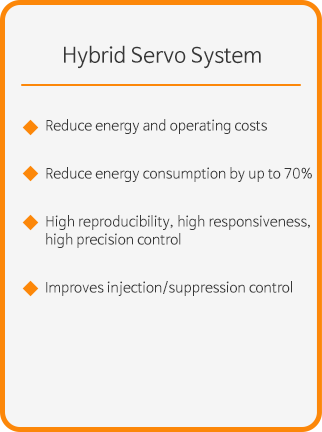

EDIS Hybrid Servo System

EDIS A B C D E F G H I J K L
EDIS 900DL 794 1420 607 9065 2390 4102 9865 880 1760 1459 2910 1670
EDIS 1050DL 794 1455 607 9255 2480 4248 1055 890 1780 1506 3012 1705
EDIS 1200DL 794 1485 627 9720 2530 4399 10647 920 1840 1635 3270 1735
EDIS 1300DL 895 1780 568 11137 2990 4865 11404 975 1950 1630 3302 2045
Check it out using the slides

Injection Unit

  Unit EDIS 900DL EDIS 1050DL EDIS 1200DL EDIS 1300DL
Screw & Cylinder Type - A B A B A B A B
Screw Diameter ㎜ 110 120 110 120 110 120 120 130
Injection Pressure kgf/㎠Mpa 1698
166 		1427
140 		1698
166 		1427
140 		1698
166 		1427
140 		1715
168 		1461
143
Theoretical Shot Volume ㎤ 5750 6842 5750 6842 5750 6842 7464 8760
Shot Weight Of Injection (PS) g 5233 6226 5233 6226 5233 6226 6792 7972
Injection Rate ㏄/sec 800 952 800 952 800 952 1165 1367
Injection Speed ㎜/s 89 89 89 103
Injection Stroke ㎜ 605 605 605 660
Max. Screw Speed rpm 100 100 100 125
Check it out using the slides

Clamping Unit

  Unit EDIS 900DL EDIS 1050DL EDIS 1200DL EDIS 1300DL
Clamping Force ton 900 1050 1050 1300
Maximum Dayligh ㎜ 2350 2450 2450 2550
Clamping Stroke ㎜ 1850 1850 1850 1850
Max./Min. Mold Thickness ㎜ 1350/500 1350/600 1350/600 1350/700
Distance Between Tie Rods ㎜ 1320x1120 1390x1190 1360x1160 1430x1430
Platen Dimension ㎜ 1820x1600 1900x1700 1900x1700 2000x2000
에젝터방식 - 25 Point, in cross line 25 Point, in cross line 25 Point, in cross line 29 Point, in cross line
Ejector Force ton 26.5 26.5 26.5 47.1
Ejector Stroke ㎜ 250 250 250 300
Check it out using the slides

General

  Unit EDIS 900DL EDIS 1050DL EDIS 1200DL EDIS 1300DL
Electric Motor Capacity kW 68x2+18.5 68x2+22 68x2+22 68x2+48+22
Heater Capacity kW 43.3 43.3 43.3 58.5
Total Electric Capacity kW 197.8 203.3 201.3 264.5
Hydraulic Oil Reservoir ℓ 2500 2500 2500 3000
Machine Dimensions (L×W×H) m 9.96x3.01x2.50 10.10x3.12x2.50 10.50x3.30x2.52 12.30x3.70x3.00
Machine Weight ton 41 43 46 67
Check it out using the slides
EDIS A B C D E F G H I J K L
EDIS 1600DL 895 1855 800 11537 3140 5375 11631 1085 2170 1880 3760 2125
EDIS 1800DL 1055 2015 600 11987 3420 5735 11866 1120 2240 1942 3884 2285
EDIS 2500DL 1390 2200 975 13917 3680 6110 14439 1225 2450 2132 4264 2515
EDIS 3000DL 1390 2420 775 13415 4060 6430 13895 1395 2790 2255 4510 2435
Check it out using the slides

Injection Unit

  unit EDIS 1600DL EDIS 1800DL EDIS 2500DL EDIS 3000DL
Screw & Cylinder Type - A B A B A B A B
Screw Diamete ㎜ 130 140 130 140 150 160 160 170
Injection Pressure kgf/㎠Mpa 1508
148 		1301
128 		1508
148 		1301
128 		1476
145 		1298
127 		1298
127 		1149
113
Theoretical Shot Volume ㎤ 9623 11161 9623 11161 14137 16085 18096 20428
Shot Weight Of Injection (PS) g 8757 10157 8757 10157 12865 14637 16467 18589
Injection Rate ㏄/sec 1324 1536 1427 1655 1734 1973 1973 2228
Injection Speed ㎜/s 100 108 98 98
Injection Stroke ㎜ 725 725 800 900
Max. Screw Speed rpm 90 95 110 110
Check it out using the slides

Clamping Unit

  Unit EDIS 1600DL EDIS 1800DL EDIS 2500DL EDIS 3000DL
Clamping Force ton 1600 1800 2500 3000
Maximum Daylight ㎜ 3300 3300 3600 3700
Clamping Stroke ㎜ 2500 2500 2700 2700
Max./Min. Mold Thickness ㎜ 1500/800 1600/80 1700/900 1900/1000
Distance Between Tie Rods ㎜ 1620x1430 1635x1635 1830x1630 2000x1900
Platen Dimension ㎜ 2130x1940 2150x2150 2150x2310 2600x2520
No. of Ejector Pins - 29 Point, in cross line 29 Point, in cross line 33 Point, in cross line 33 Point, in cross line
Ejector Force ton 47.1 47.1 62.0 62.0
Ejector Stroke ㎜ 300 300 350 350
Check it out using the slides

General

  Unit EDIS 1600DL EDIS 1800DL EDIS 2500DL EDIS 3000DL
Electric Motor Capacity kW 68x2+48+22 68x3+22 68x2+48x2+37 68x2+48x2+37
Heater Capacity kW 67.0 67.0 90.3 110.0
Total Electric Capacity kW 273.0 293.0 359.3 379.0
Hydraulic Oil Reservoir ℓ 3000 3000 3000 3500
Machine Dimensions (L×W×H) m 12.32x3.76x3.15 12.70x4.00x3.40 14.50x4.30x3.70 13.90x4.60x4.10
Machine Weight ton 75 95 150 155
Check it out using the slides

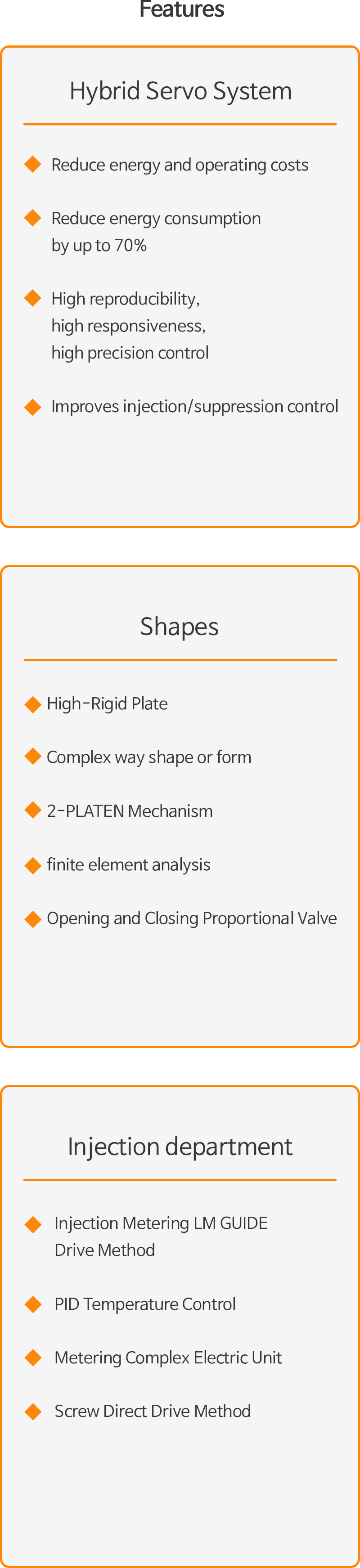

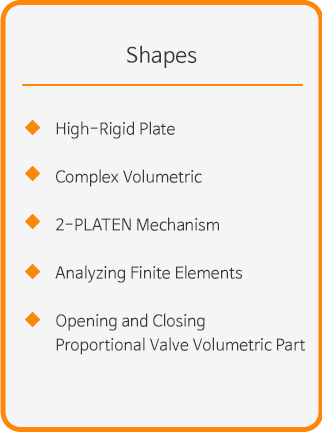

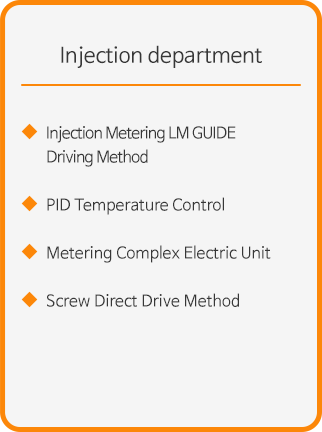

Features
