AIoT Sensors

Easy connection of sensors/equipment that anyone can do!
Even data visualization/analysis/discrimination through artificial intelligence data processing Start production management, quality management, facility management, environment management, and security control with the AIoT Platform.

AIoT Platform Components

Sensors

• Wired sensor • Dial gauge • Wireless sensor • Thermal image sensor • Numerical indicator • Industrial PLC

U/SA Edge

• Connect to sensor • Wireless interworking with U/SA Edge

U/SA Node

• Wireless linkage with U/SA Node • Wireless linkage with Eye THiNK • TCP/IP linkage with server • Built-in AI image recognition engine • Linkage with LTE/RoLa (opt.) • Numerical indicator image recognition • Wireless linkage with EyeSYNC • Dial gauge Image recognition

EyeSYNC G/W

• Video and sensor signals • Synchronized wireless transmission • Dual transmission of thermal/real images • Simultaneous condition/status control

EyeTHiNK

• Deep learning video discrimination • Simultaneous output of sensor and image signals • Production management, quality management, facility management • Environmental management, and security control

AIoT Platform Application Field

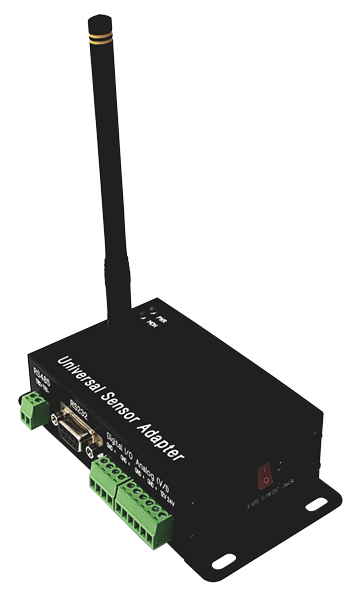

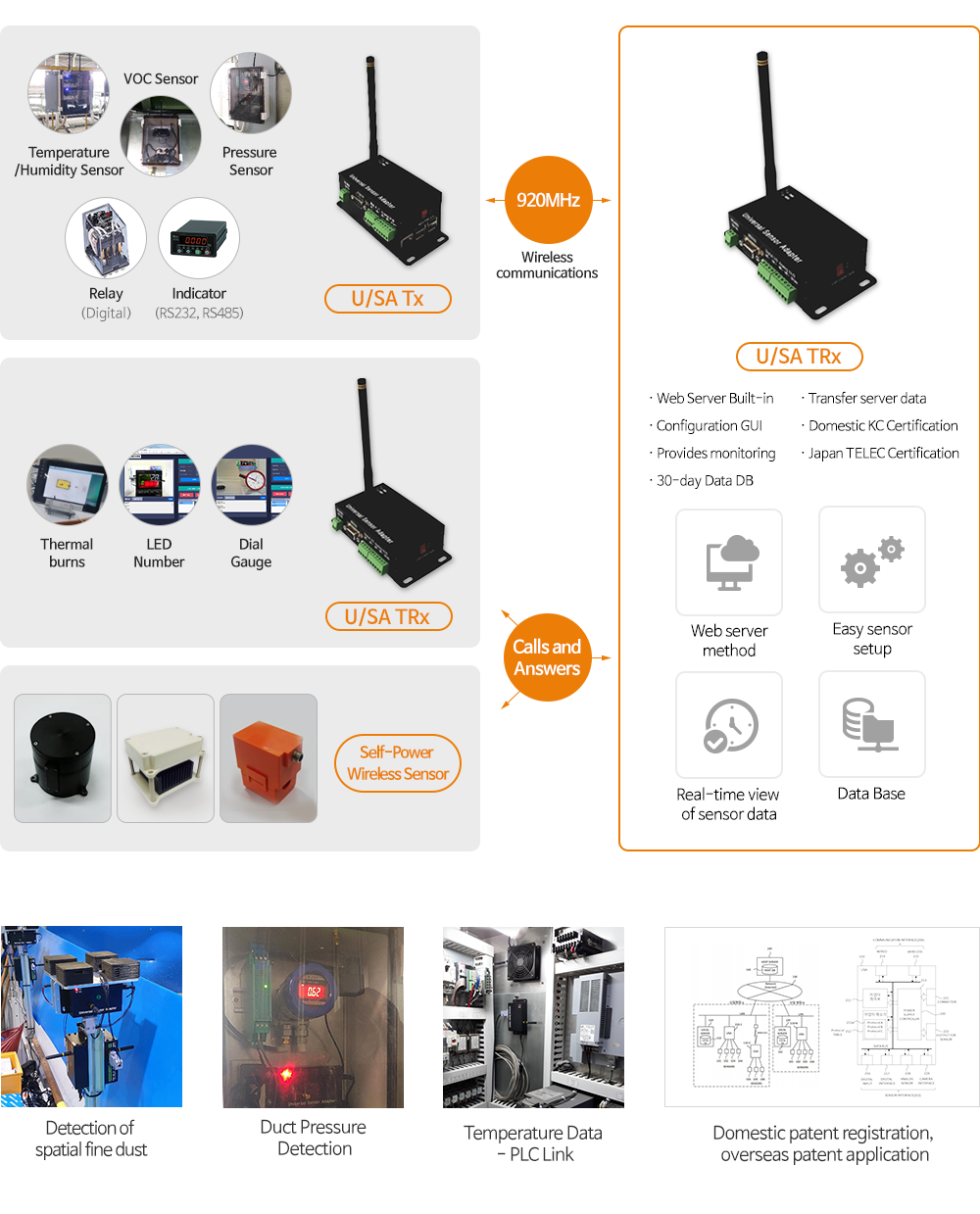

U/SA

U/SA Edge

U/SA Node

Characteristics

• Ease of installation/set-up even for non-experts • Provides a variety of sensor/communication interfaces • Preferences, embedded collection data monitoring GUI • Own DB and Server Capability • Equipped with image recognition engine • Completed obtaining KC and TELEC certification in Korea and Japan • Types of interlocking sensors for each field of application

Facility monitoring: temperature, humidity, pressure, gas, flow rate, vibration, weight, revolution, illumination, torque, thermal imaging temperature, panel meter number recognition, dial gauge recognition, production volume, contact status, operation/non-operation, PLC
Smart HACCP: Identification of harmful substances (x-ray detection, metal detection, foreign object detection), temperature humidity, flow rate
Power Monitoring: Voltage, Current, Power Factor, Phase, Power Volume

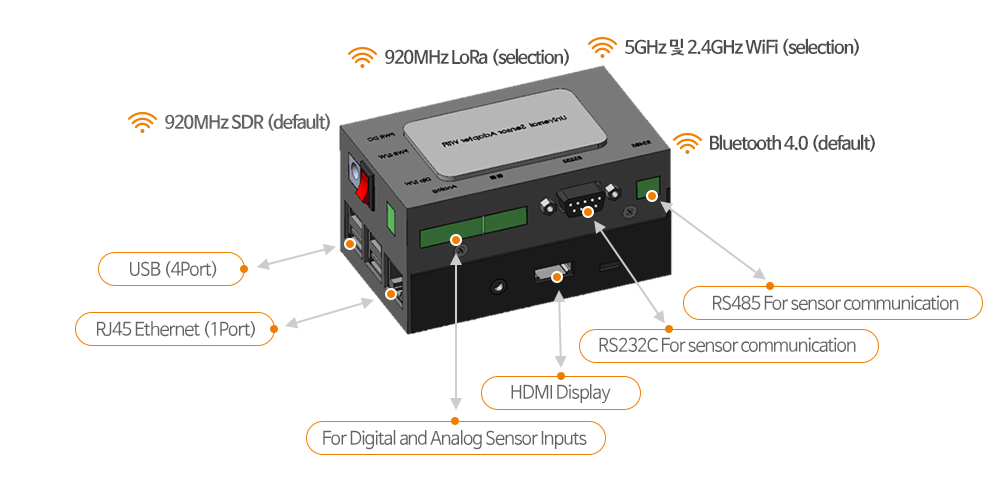

Specifications and Features
category	content
Sensor Interface	Analog Voltage/Current Input
	Digital Contact Input
	RS232/RS485
	Analog gauge, 7 segment LED (image recognition)
	Thermal imaging camera input
	Built-in Power-free wireless sensor signal reception and relay capabilities
Communication	Built-in WiFi/BLE
	920MHz 1.5Km Built-in wireless communication
	USB 4Port Built-in
	LoRa (※Option)
	LTE-M (※Option)
Additional function	Built-in web server (easy communication, sensor setup even for non-professionals)
	Small DB Built-in
	HMI Display for Field Inspection
Product Competitiveness	Similar function Overseas product 1/5 price range supply
	Smart Factory-specific features
	Export to Japan (Acquired Radio Certification in Japan)
Applications	Smart Factory Facilities and Sensor Interface
	Radio temperature, humidity, pressure, harmful substance detection, flow rate, gas sensor application
	Smart HACCP Factory
	Numbers that cannot be IoT-enabled, dial indicators
intellectual property rights	Domestic patent registration / Overseas application

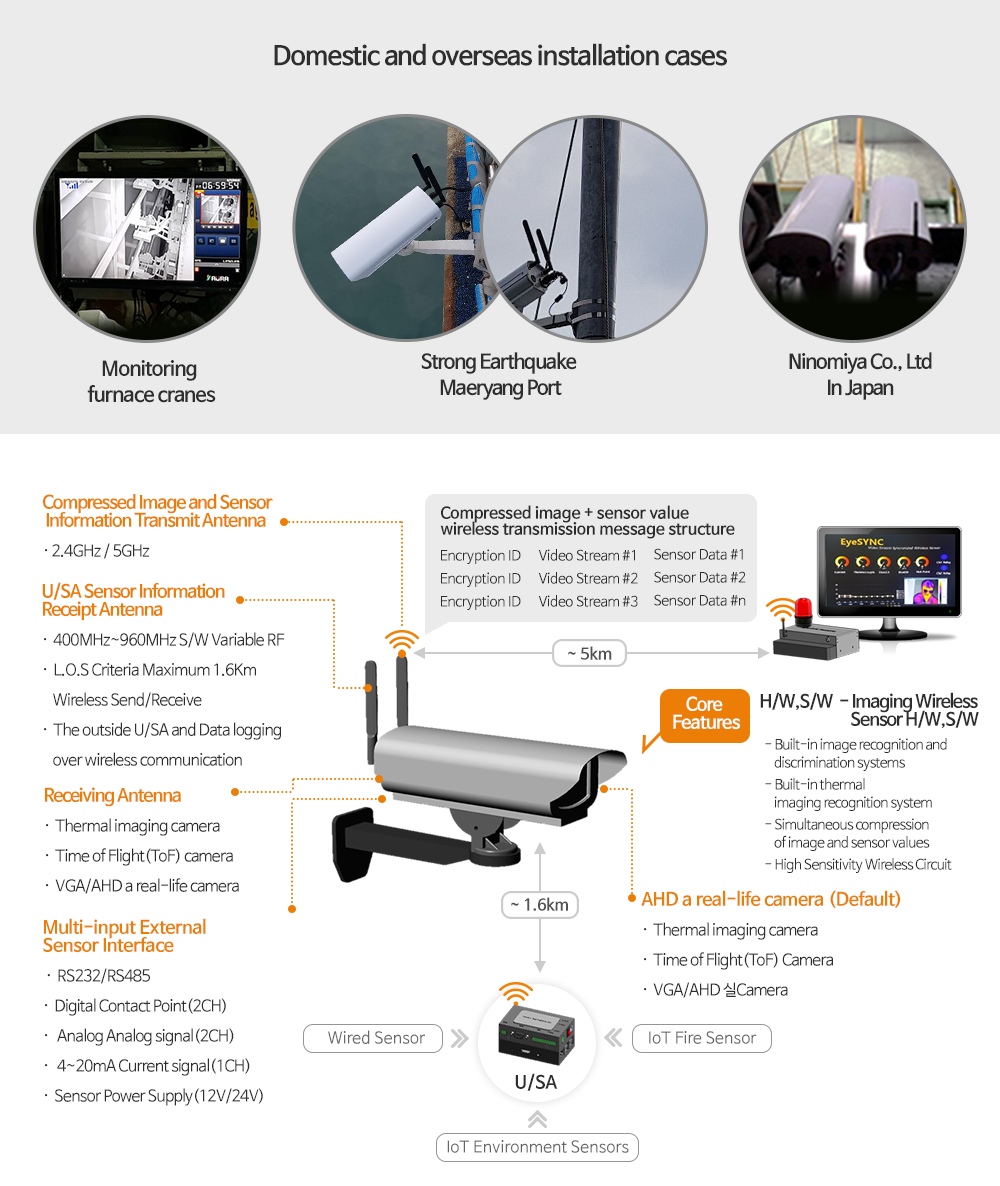

EyeSYNC

IIoT Gateway - EyeSYNC

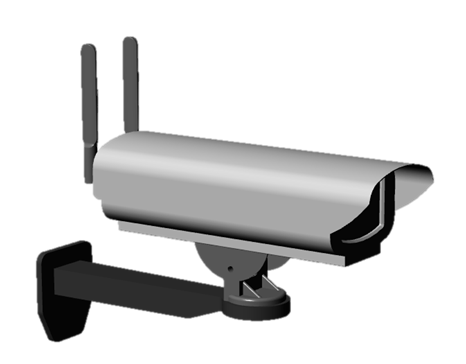

EyeSYNC (Outdoor use)

Characteristics

• Image Synchronous Wireless Sensors + Gateway • Provides a variety of sensor/communication interfaces • Implement single packet compression and encryption of image and sensor information • Get up to 5km of wireless communication performance. • Radio frequency: 2.4 GHz / 5 GHz • Completed obtaining KC and TELEC certification in Korea and Japan

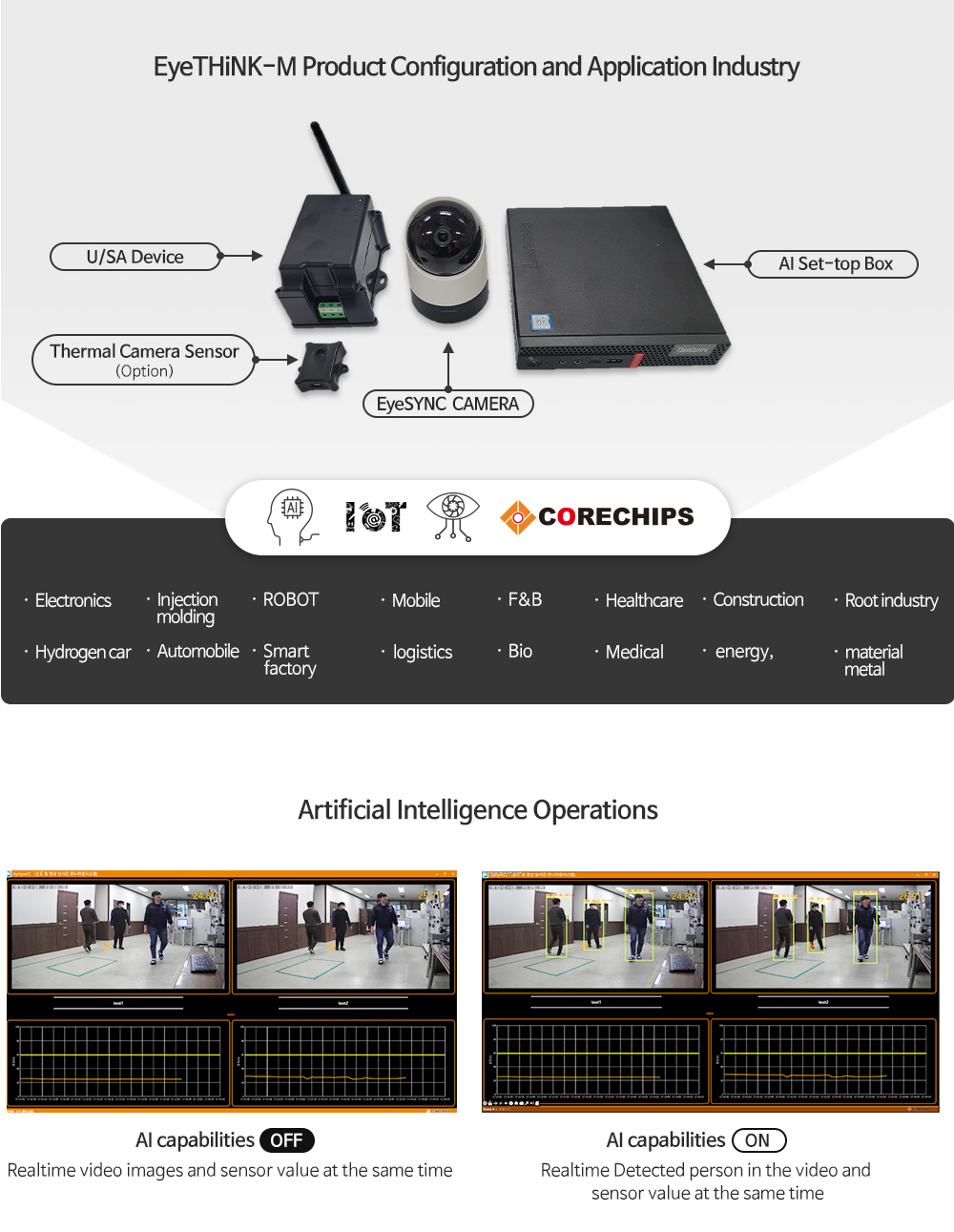

Eye THiNK

IIoT Gateway - EyeSYNC

EyeSYNC (Outdoor use)

Characteristics

• AI-based Monitoring System • 『AI-based EyeSYNC』 with video discrimination technology. • Built-in object detection capabilities with self-developed deep learning engines • 50%+ performance improvement over Open Source deep learning S/W • Developing defective injection molding product inspection system (target of release in 2022/DGIST joint development) • Development of 'Automatic Control Technology for Injection Conditions based on AI and Vision Technology' to Improve Injection Quality is underway
