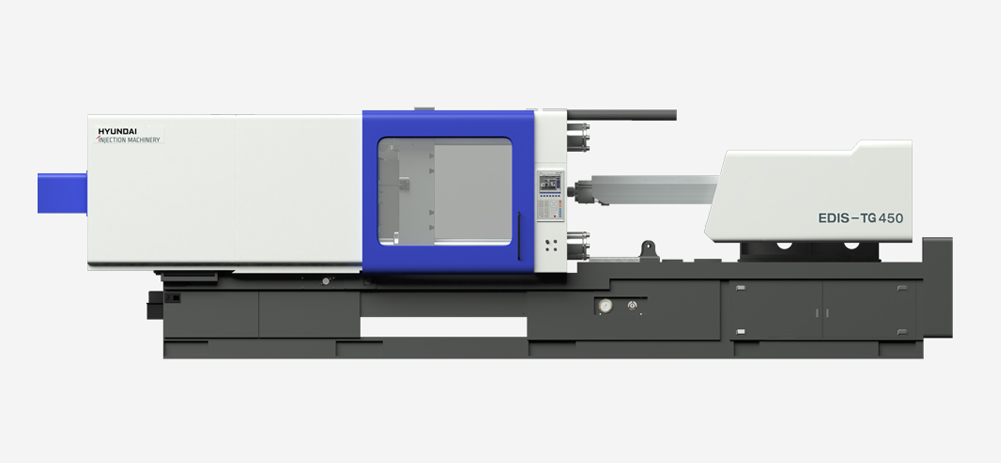

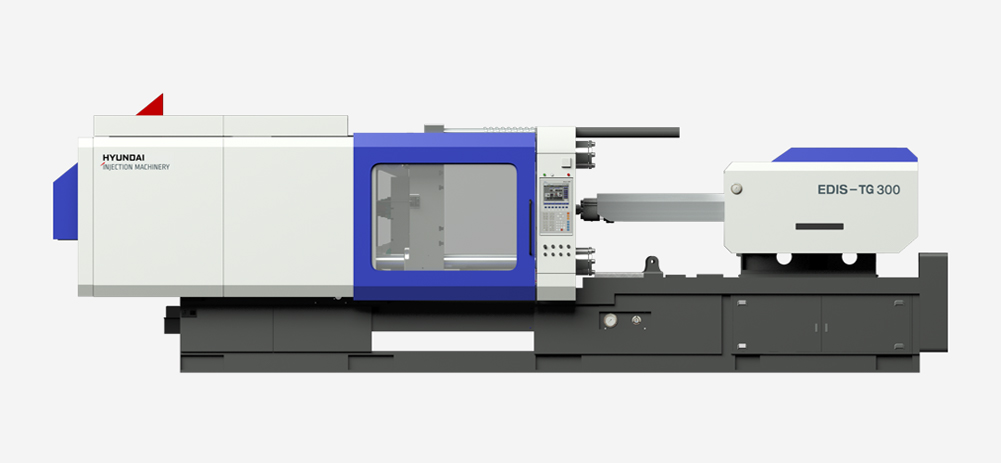

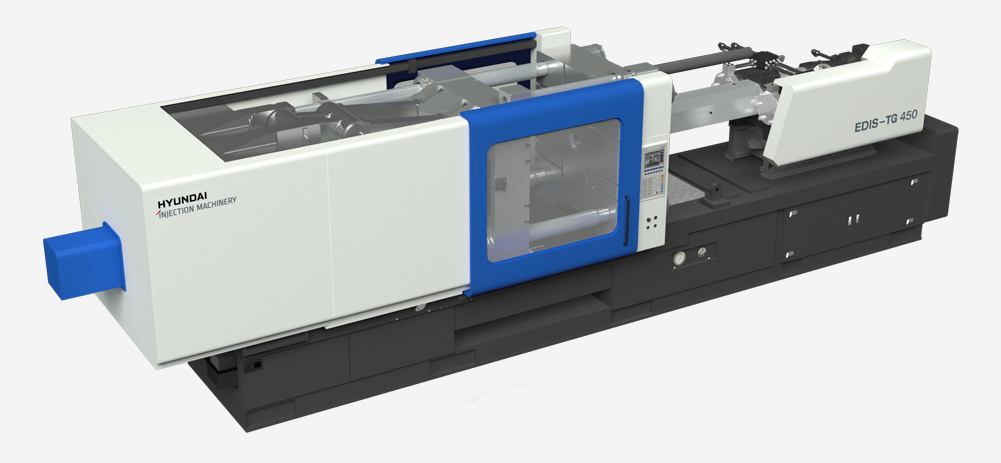

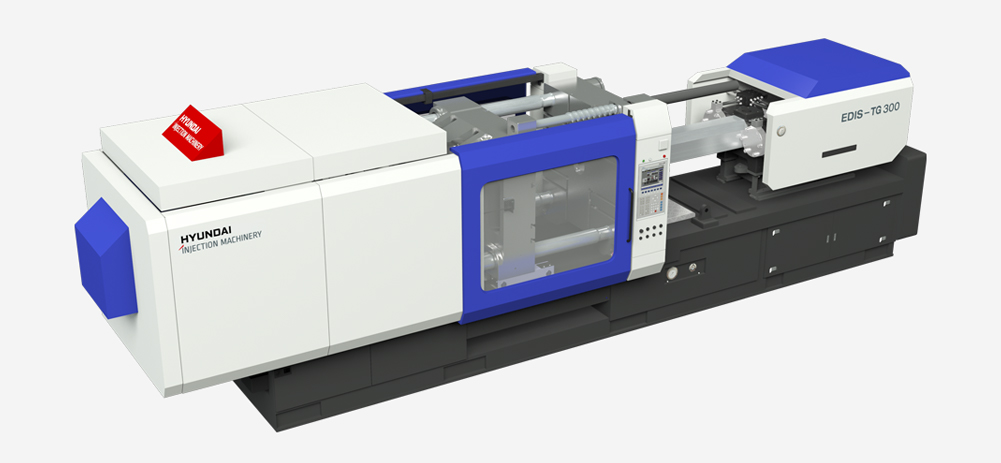

EDIS-TG

EDIS Hybrid Servo System

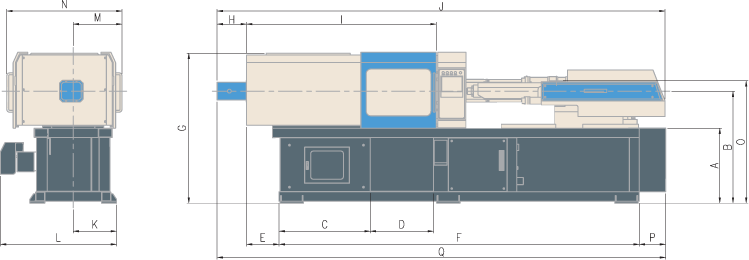

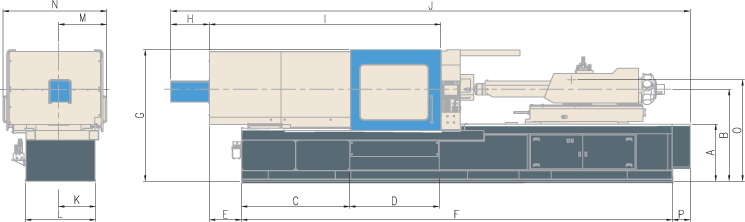

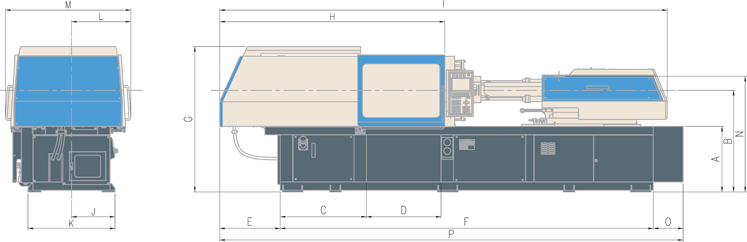

EDIS A B C D E F G H I J K L M N O P Q
EDIS 70 800 1160 967 599 314 3700 1550 103 1920 4184 492 1285 547 1180 1255 320 4437
EDIS 100 800 1195 967 671 361 3820 1610 312 2012 4766 460 1285 517 1221 1305 320 4797
EDIS 150 800 1250 1110 900 374 4400 1730 353 2384 5460 550 1375 605 1367 1420 320 5447
Check it out using the slides

Injection Unit

  Unit EDIS 70 EDIS 100 EDIS 150
Screw & Cylinder Type - K A B K A B K A B
Screw Diameter mm 30 35 40 36 40 45 40 45 50
Injection Pressure kgf/cm²Mpa 2133
209.2 		1567
153.7 		1200
117.7 		2355
231.0 		1908
187.1 		1507
147.8 		2138
209.6 		1689
165.6 		1368
134.2
Theoretical Shot Volume cm³ 106 144 188 204 251 318 283 358 442
Shot Weight Of Injection (PS) g 96 131 172 185 229 289 257 326 402
Injection Rate cc/sec 84 115 150 96 118 149 133 168 207
Injection Speed mm/s 119 94 106
Injection Stroke mm 150 200 225
Max. Screw Speed rpm 350 245 245 300 230 230 280 225 225
Check it out using the slides

Clamping Unit

  Unit EDIS 70 EDIS 100 EDIS 150
Clamping Force ton 70 100 150
Maximum Dayligh mm 620 710 870
Clamping Stroke mm 260 310 400
Max./Min. Mold Thickness mm 360/150 400/200 470/220
Distance Between Tie Rods mm 350x350 410x410 480x480
Platen Dimension mm 520x520 600x600 700x700
No. of Ejector Pins - 5 Point, in cross line 5 Point, in cross line 9 Point, in cross line
Ejector Force ton 3.3 4.4 4.4
Ejector Stroke mm 80 90 120
Check it out using the slides

General

  Unit EDIS 70 EDIS 100 EDIS 150
Electric Motor Capacity kW 16 16 24
Heater Capacity kW 6.3 7.6 9.3
Total Electric Capacity kW 22.3 23.6 33.3
Hydraulic Oil Reservoir ℓ 230 230 320
Machine Dimensions (L×W×H) m 4.44x1.34x1.55 4.80x1.34x1.61 5.45x1.38x1.73
Machine Weigh ton 3.7 4.8 6.7
Check it out using the slides

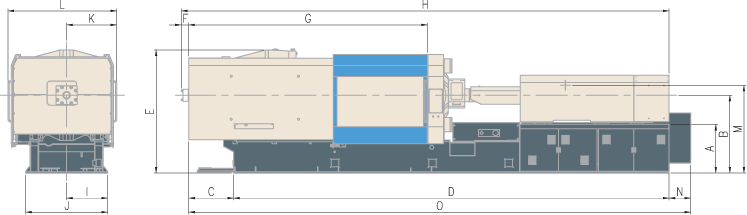

EDIS A B C D E F G H I J K L M N O P
EDIS 110 790 1168 860 800 600 4245 1623 2304 4717 555 1010 684 1410 1308 360 5205
EDIS 135 790 1170 965 800 645 4350 1623 2465 4862 505 1010 660 1410 1308 360 5355
EDIS 180 790 1225 1040 900 730 4620 1754 2715 5400 525 1050 717 1514 1471 360 5710
Check it out using the slides

Injection Unit

  unit EDIS 110 EDIS 135 EDIS 180
Screw & Cylinder Type - K A B K A B K A B
Screw Diameter ㎜ 36 40 45 36 40 45 40 45 50
Injection Pressure kgf/㎠Mpa 2083
204.3 		1688
165.5 		1333
130.8 		2355
231.0 		1908
187.1 		1507
147.8 		2423
237.6 		1914
187.7 		1550
152.0
Theoretical Shot Volume ㎤ 204 251 318 204 251 318 283 358 442
Shot Weight Of Injection (PS) g 185 229 289 185 229 289 257 326 402
Injection Rate ㏄/sec 108 133 169 120 149 188 168 213 263
Injection Speed ㎜/s 106 118 134
Injection Stroke ㎜ 200 200 225
Max. Screw Speed rpm 300 230 230 385 290 290 355 285 285
Check it out using the slides

Clamping Unit

  Unit EDIS 110 EDIS 135 EDIS 180
Clamping Force ton 110 135 180
Maximum Daylight ㎜ 795 850 980
Clamping Stroke ㎜ 375 400 460
Max./Min. Mold Thickness ㎜ 420/150 450/150 520/180
Distance Between Tie Rods ㎜ 420x420 460x460 510x510
Platen Dimension ㎜ 620x620 670x670 750x750
No. of Ejector Pins - 5 Point, in cross line 9 Point, in cross line 9 Point, in cross line
Ejector Force ton 4.0 4.0 4.0
Ejector Stroke ㎜ 100 110 140
Check it out using the slides

General

  Unit EDIS 110 EDIS 135 EDIS 180
Electric Motor Capacity kW 16 24 34
Heater Capacity kW 7.6 7.6 9.3
Total Electric Capacity kW 23.6 31.6 43.3
Hydraulic Oil Reservoir ℓ 280 300 350
Machine Dimensions (L x W x H) m 5.21x1.41x1.63 5.36x1.41x1.63 5.71x1.52x1.76
Machine Weight ton 4.5 5.2 7.1
Check it out using the slides
EDIS A B C D E F G H I J K L M N O P
EDIS 250 853 1363 1408 1007 438 5591 1883 405 2879 6789 615 1100 683 1447 1513 360
EDIS 300 870 1365 1500 1260 480 6056 2035 250 3275 7166 650 1230 837 1763 1575 380
EDIS 350 900 1450 1695 1400 502 6745 2075 605 3621 8212 580 1100 755 1624 1602 360
EDIS 450 900 1530 1835 1560 708 7095 2220 655 4138 8888 675 1270 862 1858 1695 430
Check it out using the slides

Injection Unit

  unit EDIS 250 EDIS 300 EDIS 350 EDIS 450
Screw & Cylinder Type - A B C A B C A B C A B C
Screw Diameter ㎜ 55 60 65 55 60 65 66 75 85 76 85 90
Injection Pressure kgf/㎠Mpa 1838
180.2 		1544
151.4 		1316
129.0 		1944
190.5 		1633
160.1 		1392
136.5 		1825
179.0 		1413
138.6 		1100
107.9 		1817
178.2 		1453
142.5 		1296
127.1
Theoretical Shot Volume ㎤ 535 636 747 653 778 913 941 1215 1560 1452 1816 2036
Shot Weight Of Injection (PS) g 486 579 679 594 708 831 856 1106 1420 1321 1651 1853
Injection Rate ㏄/sec 245 291 342 308 367 431 308 398 511 396 496 556
Injection Speed ㎜/s 103 130 90 87
Injection Stroke ㎜ 225 275 275 320
Max. Screw Speed rpm 225 225 180 215 155 155 135 120
Check it out using the slides

Clamping Unit

  Unit EDIS 250 EDIS 300 EDIS 350 EDIS 450
Clamping Force ton 250 300 350 450
Maximum Daylight ㎜ 1050 1260 1370 1550
Clamping Stroke ㎜ 500 580 650 750
Max./Min. Mold Thickness ㎜ 550/280 680/300 720/320 800/380
Distance Between Tie Rods ㎜ 560x560 660x635 710x700 810x810
Platen Dimension ㎜ 820x820 950x950 1005x1005 1175x1175
No. of Ejector Pins - 9 Point, in cross line 13 Point, in cross line 17 Point, in cross line 17 Point, in cross line
Ejector Force ton 7.0 8.0 11.0 11.0
Ejector Stroke ㎜ 130 150 150 150
Check it out using the slides

General

  Unit EDIS 250 EDIS 300 EDIS 350 EDIS 450
Electric Motor Capacity kW 34 48 48 68
Heater Capacity kW 14.3 14.3 16.1 14.3 14.3 16.1 19.1 19.1 22.6 26.1
Total Electric Capacity kW 48.3 48.3 50.1 62.3 62.3 64.1 67.1 67.1 70.6 94.1
Hydraulic Oil Reservoir ℓ 480 590 630 810
Machine Dimensions (L x W x H) m 6.79x1.45x1.89 7.52x1.77x2.04 8.22x1.63x2.08 8.89x1.86x2.22
Machine Weight ton 9 14.5 17 21.5
Check it out using the slides
EDIS A B C D E F G H I J K L M N O
EDIS 550 925 1500 804 8019 2325 296 4200 9119 745 1490 935 2038 1700 430 9253
EDIS 650 925 1500 782 8562 2370 262 4533 9606 780 1560 963 2095 1700 430 9774
EDIS 650W 975 1555 895 8662 2460 149 4750 9706 815 1630 999 2166 1755 430 9987
Check it out using the slides

Injection Unit

  unit EDIS 550 EDIS 650 EDIS 650W
Screw & Cylinder Type - A B C A B C A B C
Screw Diameter ㎜ 83 92 98 92 100 105 92 100 105
Injection Pressure kgf/㎠Mpa 1859
108.3 		1513
148.4 		1333
130.7 		1771
173.6 		1499
147.0 		1359
133.3 		1499
173.6 		1499
147.0 		1359
133.3
Theoretical Shot Volume ㎤ 2327 2858 3243 3257 3848 4243 3257 3848 4243
Shot Weight Of Injection (PS) g 2117 2601 2952 2964 3502 3861 2964 3502 3861
Injection Rate ㏄/sec 484 595 675 508 601 662 508 601 662
Injection Speed ㎜/s 89 76 76
Injection Stroke ㎜ 430 490 490
Max. Screw Speed rpm 135 100 100
Check it out using the slides

Clamping Unit

  Unit EDIS 550 EDIS 650 EDIS 650W
Clamping Force ton 550 650 650
Maximum Daylight ㎜ 1850 2000 2050
Clamping Stroke ㎜ 900 950 950
Max./Min. Mold Thickness ㎜ 950/400 1050/450 1100/450
Distance Between Tie Rods ㎜ 910x900 960x950 1020x1020
Platen Dimension ㎜ 1300x1300 1370x1370 1460x1460
No. of Ejector Pins - 21 Point, in cross line 21 Point, in cross line 21 Point, in cross line
Ejector Force ton 17.2 17.2 17.2
Ejector Stroke ㎜ 210 210 250
Check it out using the slides

General

  Unit EDIS 550 EDIS 650 EDIS 650W
Electric Motor Capacity kW 34+34 34+34 34+34
Heater Capacity kW 29.2 35.3 35.3
Total Electric Capacity kW 97.2 103.3 103.3
Hydraulic Oil Reservoir ℓ 910 1000 1100
Machine Dimensions (L x W x H) m 9.55x2.04x2.33 10.04x2.10x2.37 10.14x2.17x2.46
Machine Weight ton 30 32 34
Check it out using the slides

Features
