H-TC

EDIS-TG Series

Toggle Shape Method
70 ~ 650w

EDIS-DL Series

DIRECT-LOCKING Shape Method
900 DL ~ 3000 DL

Vertical Injection Machine

Table Rotary vertical Injection Machine
General Vertical Injector Machine

Vertical/Horizontal Injection Machine

Table Rotary Vertical/Horizontal Injector Machine
General vertical/horizontal Injection Machine

Double Injection Machine

Double Underwater Injection Machine
TWO Color Injection Machine
Special Injection Machine
Table Rotary Vertical/Horizontal Injector Machine
Vertical double Injector Machine
General Vertical Injector Machine

Controller Systems

Easy operation and precise control
Next-generation controller, iMPACT 7200T

Precision Injection available with a next-generation new controller, guarantees high-performance, precision control and safety.

Characteristic

  • ·Touch screen controller
  • ·12.1" TFT True Color LCD
  • ·User interface enhancement (touch and keyboard at the same time)
  • ·USB memory-molding memory, screen capture, program download available
  • ·User level by password
  • ·Injection speed graph and production data comparison graph display
  • ·200 internal mold data
  • ·500 external storage of mold data (optional)
  • ·Providing experienced communication protocol for integrated management of Injection

Operation Monitor

  • Operation progress display temperature, pressure display operation
  • Temperature status display machine operation screen display
  • Display of various location status
  • Injection 5 stages, holding pressure 3 stages
  • High-speed Injection function using accumulator
  • Control cushion by selecting the Injection distance/time/time + distance

Injection

  • Operation progress display temperature, pressure display operation
  • Temperature status display machine operation screen display
  • Display of various location status
  • Injection 5 stages, holding pressure 3 stages
  • High-speed Injection function using accumulator
  • Control cushion by selecting the Injection distance/time/time + distance

Metering

  • 5-step weighing control and back pressure control
  • Anti-pollution selectable before/after weighing automatic purging possible
  • Manual back pressure function

Temperature

Auto PID Temperature Control

Target Temperature Realiztion

  • Operation progress display temperature, pressure display operation
  • Temperature status display machine operation screen display
  • Display of various location status
  • Injection 5 stages, holding pressure 3 stages
  • Control cushion by selecting the Injection
    distance/time/time + distance
  • High-speed Injection possible using accumulator

Ejector

  • Controlling Ejector forward/reverse 2-stage
  • Controlling Ejector operation basic / continuous / standby selection
  • Air blow function

Alam

  • Alarm history storage function
  • Save alarm time and release time
  • Save up to 200 latest alarm history

SPC

  • Saving Injection data related to quality every time one process is completed
  • Save up to 200 SPC data
  • SPC data saving function to the last 200 USB memory

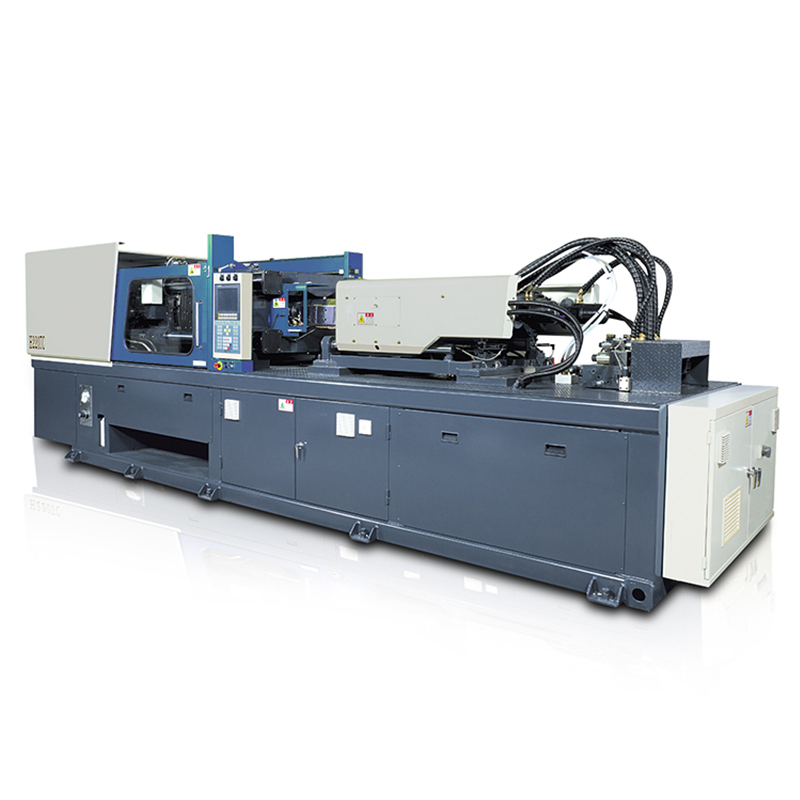

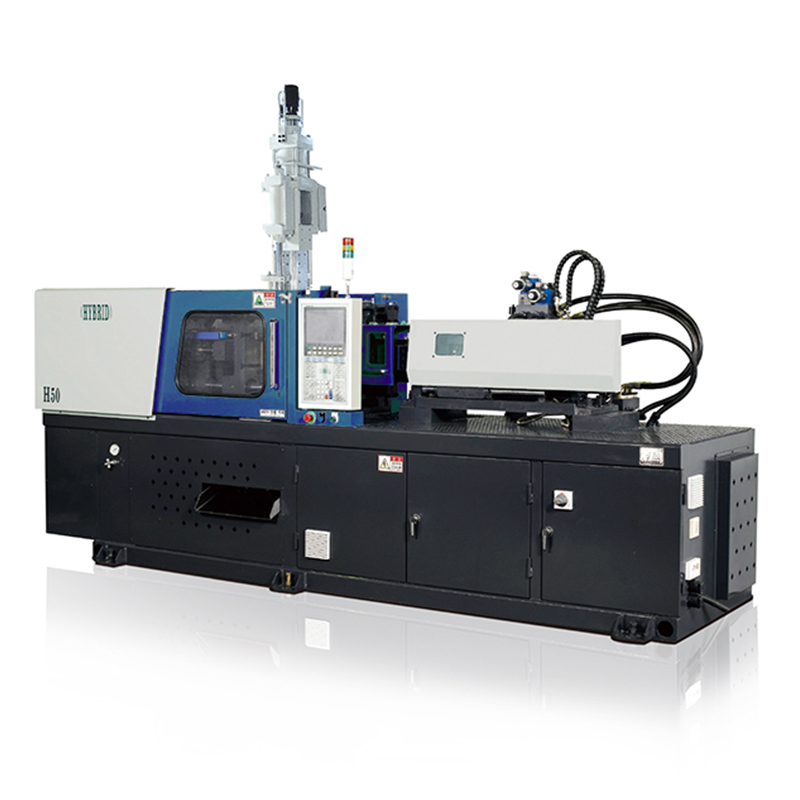

series

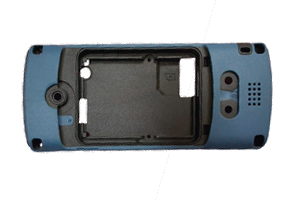

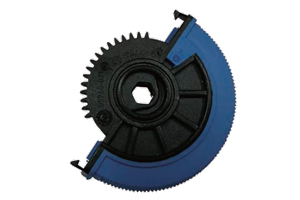

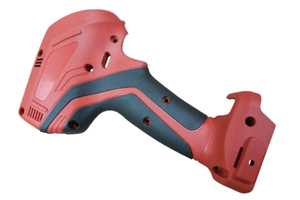

◆ Features

◆ Rotary Plate Size

H-120TC H-160TC H-250TC H-400TC H-600TC H-800TC H-1000TC
A Ø740 Ø860 Ø995 Ø1220 Ø1420 Ø1520 Ø1620
B □280 □350 □410 □520 □600 □650 □690
C 270 340 (R50) 400 (R50) 520 (R50) 600 (R50) 640 (R50) 680 (R50)
D 325 450 (R50) 500 (R50) 590 (R50) 700 (R50) 750 (R50) 800 (R50)
E 400 450 500 600 700 750 800
Check it out using the slides
◆ [Specification] Injection Unit
Item Screw Type Screw Diameter Injection Pressure Injection Capacity Injection Weight (PS) Injection Rate Injection Stroke Screw Speed
Unit mm kg/㎠ ㎠ g ㎤/s m r.p.m
H-120TC S 25 3250 56 49 71 115 0-300
A 28 2600 70 61 89
B 32 2000 92 81 117
H-160TC S 28 3200 70 62 94 115 0-300
A 32 2450 92 81 123
B 36 1950 116 102 155
H-250TC S 28 3200 83 73 106 135 0-300
A 32 2450 108 95 138
B 36 1950 137 121 175
S1 36 2850 152 134 121 150 0-250
A1 40 2300 188 166 150
B1 45 1800 238 210 190
H-400TC S 40 2800 188 166 166 150 0-250
A 45 2200 238 210 173
B 50 1800 294 259 213 200
H-600TC S 45 2700 318 281 171 200 0-200
A 50 2200 392 346 211
B 55 1750 593 524 225 250
H-800TC S 55 2300 593 524 245 250 0-200
A 60 1940 706 624 299
B 65 1650 827 731 350
H-1000TC S 65 2000 827 731 287 250 0-270
A 70 1730 962 850 334
B 75 1500 1104 975 383
Check it out using the slides
◆ [Specification] Clamping Unit
Item Clamping Force Mold Thickness (Min) Clamping Stroke Maximum Daylight Rotation Table Dimension Mold Max Size(L×W) Ejector Force Ejector Stroke Available Number of Mold
Unit ton mm mm mm Ø(mm) mm ton mm ea
H-120TC 120 170 450 620 Ø740 325×270 (□280) 2.7 100 2
H-160TC 160 200 550 750 Ø860 450×340 (□350) 2.7 100 2
H-250TC
(S,A,B)		 250 250 650 900 Ø995 500×400 (□410) 4.3 100 2
H-250TC
(S1,A1,B1)		 300 650 950
H-400TC 400 350 800 1150 Ø1220 590×520 (□520) 5.4 140 2
H-600TC 600 400 850 1250 Ø1420 700×600 (□600) 5.4 170 2
H-800TC 800 450 900 1350 Ø1520 750×640 (□650) 8.9 200 2
H-1000TC 1000 500 1000 1500 Ø1620 800×680 (□690) 12.6 200 2
Check it out using the slides
◆ [Specification] Common
Item Total wattage Server Motor Capacity Heater Capacity Machine Dimension
(L×W×H)		 Oil Tank Capacity Machine Weight
Unit kw kw kw m ℓ ton
H-120TC 50.5 39.5 11 4.5×1.5×1.75 400 7
H-160TC 52.5 39.5 13 5.1×1.65×1.8 400 8.4
H-250TC(S,A,B) 76 61 15 6.3×1.8×1.9 600 11
H-250TC(S1,A1,B1) 78 17
H-400TC 103.5 81.5 22 7.6×2.1×2.4 1000 24
H-600TC 108.5 81.5 27 8.5×2.4×2.6 1200 30
H-800TC 130 97 33 9.3×2.6×2.8 1500 35
H-1000TC 144 100 44 10.5×2.7×2.9 1700 46
Check it out using the slides
