Controller Systems

Easy operation and precise control
Next-generation controller, iMPACT 7200T

Precision Injection available with a next-generation new controller, guarantees high-performance, precision control and safety.

Characteristic

• ·Touch screen controller
• ·12.1" TFT True Color LCD
• ·User interface enhancement (touch and keyboard at the same time)
• ·USB memory-molding memory, screen capture, program download available
• ·User level by password

• ·Injection speed graph and production data comparison graph display
• ·200 internal mold data
• ·500 external storage of mold data (optional)
• ·Providing experienced communication protocol for integrated management of Injection

Operation Monitor

• Operation progress display temperature, pressure display operation
• Temperature status display machine operation screen display
• Display of various location status

• Injection 5 stages, holding pressure 3 stages
• High-speed Injection function using accumulator
• Control cushion by selecting the Injection distance/time/time + distance

Injection

• Operation progress display temperature, pressure display operation
• Temperature status display machine operation screen display
• Display of various location status

• Injection 5 stages, holding pressure 3 stages
• High-speed Injection function using accumulator
• Control cushion by selecting the Injection distance/time/time + distance

Metering

• 5-step weighing control and back pressure control
• Anti-pollution selectable before/after weighing automatic purging possible
• Manual back pressure function

Temperature

Auto PID Temperature Control

Target Temperature Realiztion

• Operation progress display temperature, pressure display operation
• Temperature status display machine operation screen display
• Display of various location status
• Injection 5 stages, holding pressure 3 stages
• Control cushion by selecting the Injection
  distance/time/time + distance
• High-speed Injection possible using accumulator

Ejector

• Controlling Ejector forward/reverse 2-stage
• Controlling Ejector operation basic / continuous / standby selection
• Air blow function

Alam

• Alarm history storage function
• Save alarm time and release time
• Save up to 200 latest alarm history

SPC

• Saving Injection data related to quality every time one process is completed
• Save up to 200 SPC data
• SPC data saving function to the last 200 USB memory

series

• Catalog Application
• Contact us

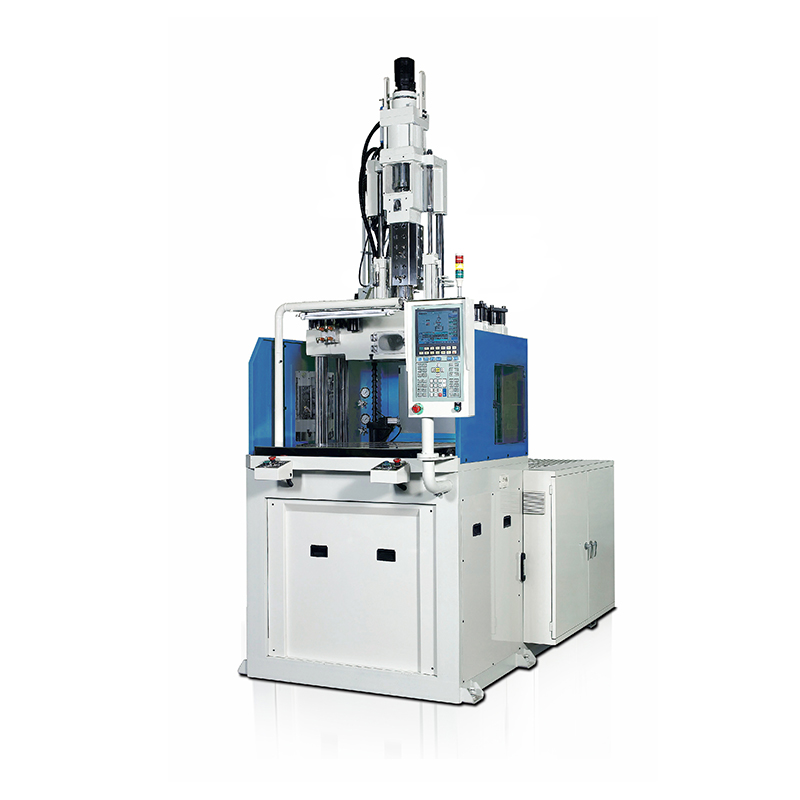

◆ Features

• · Vertical camping & vertical injection suitable for complex insert molding.
• · Applicable for a wide variety of mold types (including general horizontal type molds).
• · Cycle time further reduced by high speed table and brake circuit.
• · Accurate positioning with lock pin (extended mold life).
• · High sensibility mold protection and reduced clamp pressurization time.
• · Reduced cycle time due to independent ejector circuitry
• · High energy-efficiency AC Servo Pump
• · 10.4″Color TFT LCD provided.
• · 4-axis tie-bar structure

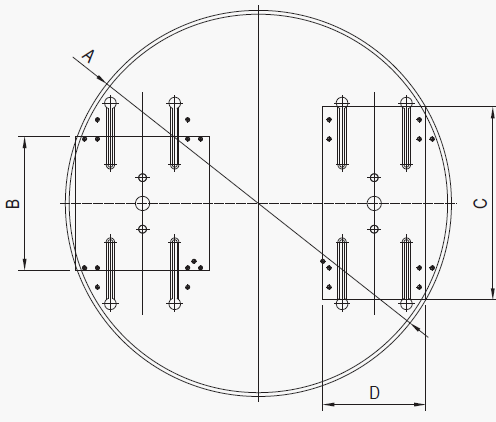

◆ Rotary Plate Size
