Precision Injection available with a next-generation new controller, guarantees high-performance, precision control and safety.
Characteristic
- ·Touch screen controller
- ·12.1" TFT True Color LCD
- ·User interface enhancement (touch and keyboard at the same time)
- ·USB memory-molding memory, screen capture, program download available
- ·User level by password
- ·Injection speed graph and production data comparison graph display
- ·200 internal mold data
- ·500 external storage of mold data (optional)
- ·Providing experienced communication protocol for integrated management of Injection
Operation Monitor
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- High-speed Injection function using accumulator
- Control cushion by selecting the Injection distance/time/time + distance
Injection
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- High-speed Injection function using accumulator
- Control cushion by selecting the Injection distance/time/time + distance
Metering
- 5-step weighing control and back pressure control
- Anti-pollution selectable before/after weighing automatic purging possible
- Manual back pressure function
Temperature
Auto PID Temperature Control
Target Temperature Realiztion
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- Control cushion by selecting the Injection distance/time/time + distance
- High-speed Injection possible using accumulator
Ejector
- Controlling Ejector forward/reverse 2-stage
- Controlling Ejector operation basic / continuous / standby selection
- Air blow function
Alam
- Alarm history storage function
- Save alarm time and release time
- Save up to 200 latest alarm history
SPC
- Saving Injection data related to quality every time one process is completed
- Save up to 200 SPC data
- SPC data saving function to the last 200 USB memory
.jpg)
2.jpg)

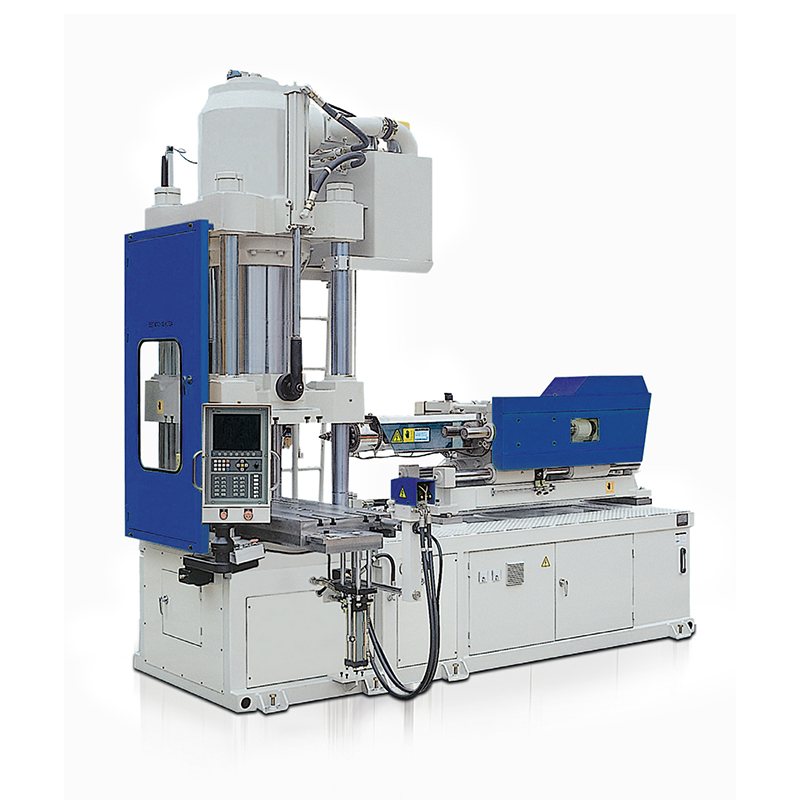

◆ Features
- · Vertical clamping, horizontal injection type.
- · High sensibility mold protection and reduced clamping pressurization time.
- · Suitable for complex insert molds
- · High energy-efficiency AC Servo Pump.
- · 10.4″Color TFT LCD provided.
- · Left-right Slide Table.
◆ Die Plate Size
| VTD-55P(SL) | VTD-100P(SL) | VTD-150P(SL) | VTD-220P(SL) | VTD-300P(SL) | |
|---|---|---|---|---|---|
| A | 1250 | 1400 | 1800 | 2100 | 2400 |
| B | 380 | 420 | 550 | 630 | 670 |
| C | 650 | 800 | 1000 | 1300 | 1500 |
.gif)
| Item | Screw Type | Screw Diameter | Injection Pressure | Injection Capacity | Injection Weight (PS) | Injection Rate | Injection Stroke | Screw Speed |
|---|---|---|---|---|---|---|---|---|
| Unit | mm | kg/㎠ | ㎠ | g | ㎤/s | m | r.p.m | |
| VTD-55P(SL) | S | 22 | 3200 | 51 | 45 | 57 | 135 | 0-300 |
| A | 25 | 2500 | 66 | 58 | 74 | |||
| B | 28 | 2000 | 83 | 73 | 93 | |||
| VTD-100P(SL) | S | 28 | 2900 | 92 | 81 | 79 | 150 | 0-300 |
| A | 32 | 2200 | 120 | 106 | 103 | |||
| B | 36 | 1750 | 152 | 134 | 130 | |||
| VTD-150P(SL) | S | 40 | 2560 | 251 | 221 | 118 | 200 | 0-270 |
| A | 45 | 2000 | 318 | 281 | 149 | |||
| B | 50 | 1630 | 392 | 346 | 185 | |||
| VTD-220P(SL) | S | 45 | 2400 | 397 | 350 | 144 | 250 | 0-250 |
| A | 50 | 1950 | 490 | 433 | 177 | |||
| B | 55 | 1600 | 593 | 524 | 215 | |||
| VTD-300P(SL) | S | 50 | 2300 | 539 | 476 | 181 | 275 | 0-200 |
| A | 55 | 1900 | 653 | 577 | 219 | |||
| B | 60 | 1450 | 777 | 686 | 260 |
| Item | Clamping Force | Clamping Stroke | Mold Thickness (Min) | Maximum Daylight | Nozzle Center High ('P' Ttpe) | Ejector Force | Ejector Stroke |
|---|---|---|---|---|---|---|---|
| Unit | ton | mm | mm | mm | mm | ton | mm |
| VTD-55P(SL) | 55 | 250 | 200 | 450 | 130 | 1.5 | 75 |
| VTD-100P(SL) | 100 | 300 | 200 | 450 | 150 | 2.7 | 75 |
| VTD-150P(SL) | 150 | 350 | 250 | 550 | 200 | 2.7 | 100 |
| VTD-220P(SL) | 220 | 450 | 350 | 800 | 300 | 4.3 | 150 |
| VTD-300P(SL) | 300 | 500 | 350 | 850 | 250 | 4.3 | 175 |
| Item | Total wattage | Motor Capacity | Heater Capacity | Machine Dimension(L×W×H) | Oil Tank Capacity | Machine Weight |
|---|---|---|---|---|---|---|
| Unit | kw | kw | kw | m | ℓ | ton |
| VTD-55P(SL) | 23.7 | 18.7 | 5 | 2.8x2.3x2.3 | 250 | 6 |
| VTD-100P(SL) | 27.7 | 21.7 | 6 | 3.1x2.7x2.3 | 300 | 8 |
| VTD-150P(SL) | 33.7 | 26.7 | 7 | 3.4x2.8x2.9 | 400 | 12 |
| VTD-220P(SL) | 42 | 33 | 9 | 3.8x1.6x3.5 | 500 | 16 |
| VTD-300P(SL) | 44 | 33 | 11 | 4.6x3.5x3.3 | 600 | 19 |
