Controller Systems

Easy operation and precise control
Next-generation controller, iMPACT 7200T

Precision Injection available with a next-generation new controller, guarantees high-performance, precision control and safety.

Characteristic

• ·Touch screen controller
• ·12.1" TFT True Color LCD
• ·User interface enhancement (touch and keyboard at the same time)
• ·USB memory-molding memory, screen capture, program download available
• ·User level by password

• ·Injection speed graph and production data comparison graph display
• ·200 internal mold data
• ·500 external storage of mold data (optional)
• ·Providing experienced communication protocol for integrated management of Injection

Operation Monitor

• Operation progress display temperature, pressure display operation
• Temperature status display machine operation screen display
• Display of various location status

• Injection 5 stages, holding pressure 3 stages
• High-speed Injection function using accumulator
• Control cushion by selecting the Injection distance/time/time + distance

Injection

• Operation progress display temperature, pressure display operation
• Temperature status display machine operation screen display
• Display of various location status

• Injection 5 stages, holding pressure 3 stages
• High-speed Injection function using accumulator
• Control cushion by selecting the Injection distance/time/time + distance

Metering

• 5-step weighing control and back pressure control
• Anti-pollution selectable before/after weighing automatic purging possible
• Manual back pressure function

Temperature

Auto PID Temperature Control

Target Temperature Realiztion

• Operation progress display temperature, pressure display operation
• Temperature status display machine operation screen display
• Display of various location status
• Injection 5 stages, holding pressure 3 stages
• Control cushion by selecting the Injection
  distance/time/time + distance
• High-speed Injection possible using accumulator

Ejector

• Controlling Ejector forward/reverse 2-stage
• Controlling Ejector operation basic / continuous / standby selection
• Air blow function

Alam

• Alarm history storage function
• Save alarm time and release time
• Save up to 200 latest alarm history

SPC

• Saving Injection data related to quality every time one process is completed
• Save up to 200 SPC data
• SPC data saving function to the last 200 USB memory

series

• Catalog Application
• Contact us

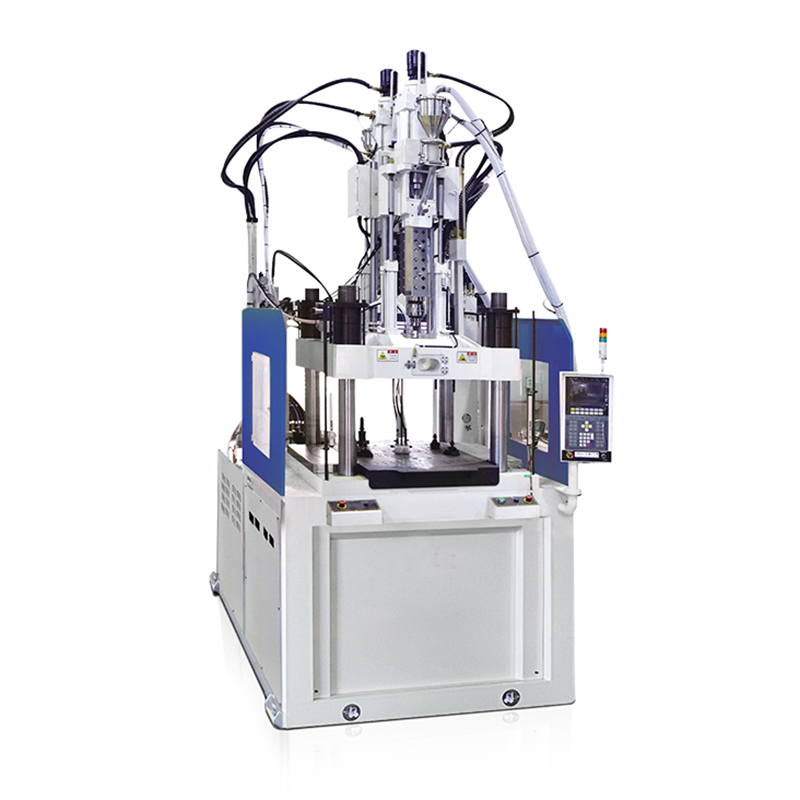

◆ Features

• · Vertical clamping, vertical injection type.
• · Two sets of independent molds. (upper & lower) (normal/reverse rotation at 180°)
• · Three or four sets of independent molds available on order. (option)
• · Fixed bed structure available on order. (4 sets of molds, simultaneous 4-color molding) - Optimized for system automation.
• · Precise molding control by resin and product by independent control of 1st and 2nd injection units.
• · Stable plasticizing realized by proportional back pressure control.
• · AC Servo Pump speed controlled to implement zero mPa and 1% flow of operating accuracy

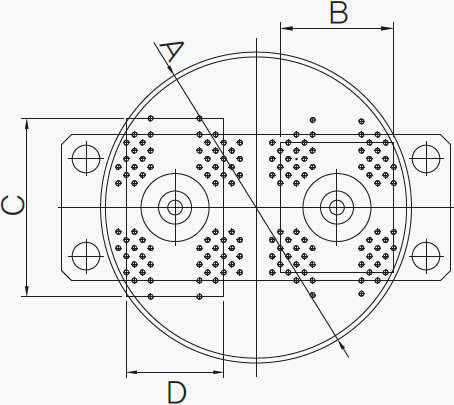

◆ Die Plate Size
