Precision Injection available with a next-generation new controller, guarantees high-performance, precision control and safety.
Characteristic
- ·Touch screen controller
- ·12.1" TFT True Color LCD
- ·User interface enhancement (touch and keyboard at the same time)
- ·USB memory-molding memory, screen capture, program download available
- ·User level by password
- ·Injection speed graph and production data comparison graph display
- ·200 internal mold data
- ·500 external storage of mold data (optional)
- ·Providing experienced communication protocol for integrated management of Injection
Operation Monitor
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- High-speed Injection function using accumulator
- Control cushion by selecting the Injection distance/time/time + distance
Injection
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- High-speed Injection function using accumulator
- Control cushion by selecting the Injection distance/time/time + distance
Metering
- 5-step weighing control and back pressure control
- Anti-pollution selectable before/after weighing automatic purging possible
- Manual back pressure function
Temperature
Auto PID Temperature Control
Target Temperature Realiztion
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- Control cushion by selecting the Injection distance/time/time + distance
- High-speed Injection possible using accumulator
Ejector
- Controlling Ejector forward/reverse 2-stage
- Controlling Ejector operation basic / continuous / standby selection
- Air blow function
Alam
- Alarm history storage function
- Save alarm time and release time
- Save up to 200 latest alarm history
SPC
- Saving Injection data related to quality every time one process is completed
- Save up to 200 SPC data
- SPC data saving function to the last 200 USB memory

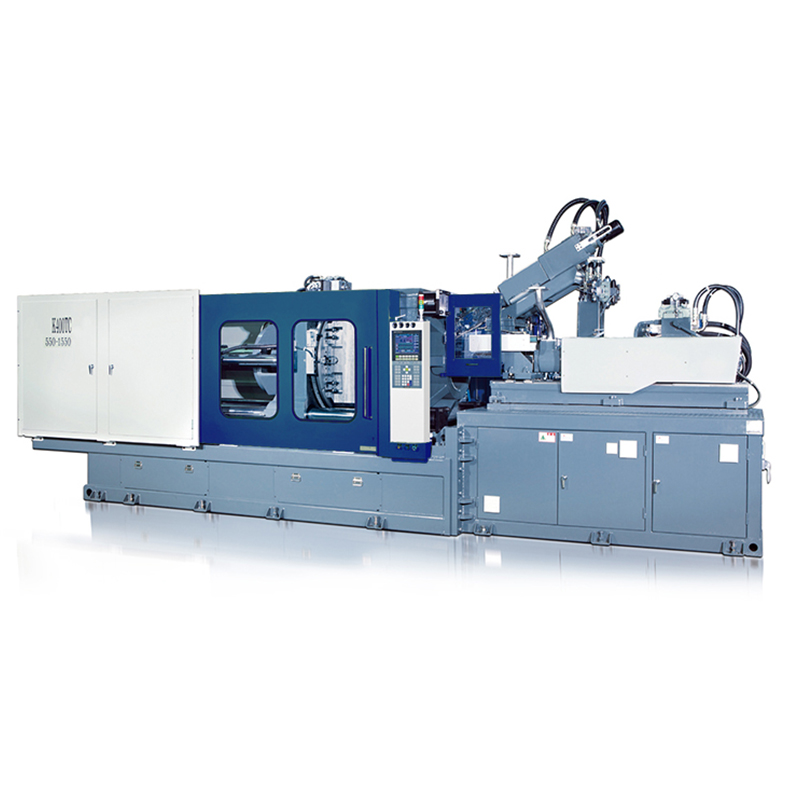

◆ Features
- · Mold-integral type dual injection
- · High speed table rotation system. (Excellent position reproducibility.)
- · High sensibility mold protection and reduced clamp pressurization time.
- · High energy-efficiency AC Servo Pump. (30 ~ 80% of energy saving)
- · Suitable for Two Color injection molding medium-large parts. (car air-con parts, etc.)

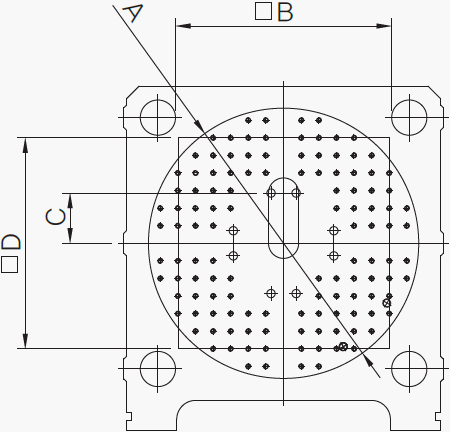

◆ Die Plate Size
| K-400TC | K-600TC | |||
|---|---|---|---|---|
| A | Ø1075 | Ø1230 | ||
| B | □860 | □915 | ||
| C | 200 | 200 | ||
| D | □840 | □900 | ||
| Item | Screw Type | Screw Diameter | Injection Pressure | Injection Capacity | Injection Weight (PS) | Injection Rate | Injection Stroke | Screw Speed |
|---|---|---|---|---|---|---|---|---|
| Unit | mm | kg/㎠ | ㎠ | g | ㎤/s | m | r.p.m | |
| K-400TC | A | 50 | 2240 | 490 | 433 | 235 | 250 | 0-250 |
| B | 55 | 1850 | 593 | 524 | 285 | |||
| A1 | 40 | 1570 | 188 | 166 | 150 | 150 | 0-250 | |
| B1 | 35 | 2050 | 144 | 127 | 115 | |||
| K-600TC | A | 60 | 2200 | 706 | 624 | 339 | 250 | 0-250 |
| B | 45 | 2200 | 278 | 245 | 190 | 175 |
| Item | Clamping Force | Mold Thickness (Min) | Clamping Stroke | Maximum Daylight | Rotation Table Dimension | Mold Max Size(L×W) | Ejector Force | Ejector Stroke |
|---|---|---|---|---|---|---|---|---|
| Unit | ton | mm | mm | mm | ea | Ø(mm) | ton | mm |
| K-400 TC | 400 | 550 | 1000 | 1550 | Ø1075 | □840 | 9 | 250 |
| K-600 TC | 600 | 550 | 1000 | 1550 | Ø1230 | □900 | 11 | 250 |
| Item | Screw Type | Total wattage | Server Motor Capacity | Heater Capacity | Machine Dimension(L×W×H) | Oil Tank Capacity | Machine Weight |
|---|---|---|---|---|---|---|---|
| Unit | kw | kw | kw | m | ℓ | ton | |
| K-400 TC | A,B | 99 | 79 | 20 | 7.4x2.0x2.8 | 1100 | 24 |
| A1,B1 | 97 | 18 | |||||
| K-600 TC | A,B | 92 | 79 | 23 | 7.8x2.1x3.0 | 1500 | 32 |
