Precision Injection available with a next-generation new controller, guarantees high-performance, precision control and safety.
Characteristic
- ·Touch screen controller
- ·12.1" TFT True Color LCD
- ·User interface enhancement (touch and keyboard at the same time)
- ·USB memory-molding memory, screen capture, program download available
- ·User level by password
- ·Injection speed graph and production data comparison graph display
- ·200 internal mold data
- ·500 external storage of mold data (optional)
- ·Providing experienced communication protocol for integrated management of Injection
Operation Monitor
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- High-speed Injection function using accumulator
- Control cushion by selecting the Injection distance/time/time + distance
Injection
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- High-speed Injection function using accumulator
- Control cushion by selecting the Injection distance/time/time + distance
Metering
- 5-step weighing control and back pressure control
- Anti-pollution selectable before/after weighing automatic purging possible
- Manual back pressure function
Temperature
Auto PID Temperature Control
Target Temperature Realiztion
- Operation progress display temperature, pressure display operation
- Temperature status display machine operation screen display
- Display of various location status
- Injection 5 stages, holding pressure 3 stages
- Control cushion by selecting the Injection distance/time/time + distance
- High-speed Injection possible using accumulator
Ejector
- Controlling Ejector forward/reverse 2-stage
- Controlling Ejector operation basic / continuous / standby selection
- Air blow function
Alam
- Alarm history storage function
- Save alarm time and release time
- Save up to 200 latest alarm history
SPC
- Saving Injection data related to quality every time one process is completed
- Save up to 200 SPC data
- SPC data saving function to the last 200 USB memory
3.jpg)
.jpg)
2.jpg)
◆ Features VCD-P
- · Vertical clamping, horizontal injection type. (clamp supported by C-type frame)
- · High sensibility mold protection.
- · Proportional control by clamp pressure sensor
- · Proportional back pressure control.
- · 10.4″Color TFT LCD provided.
- · Fixed Bottom Platen.

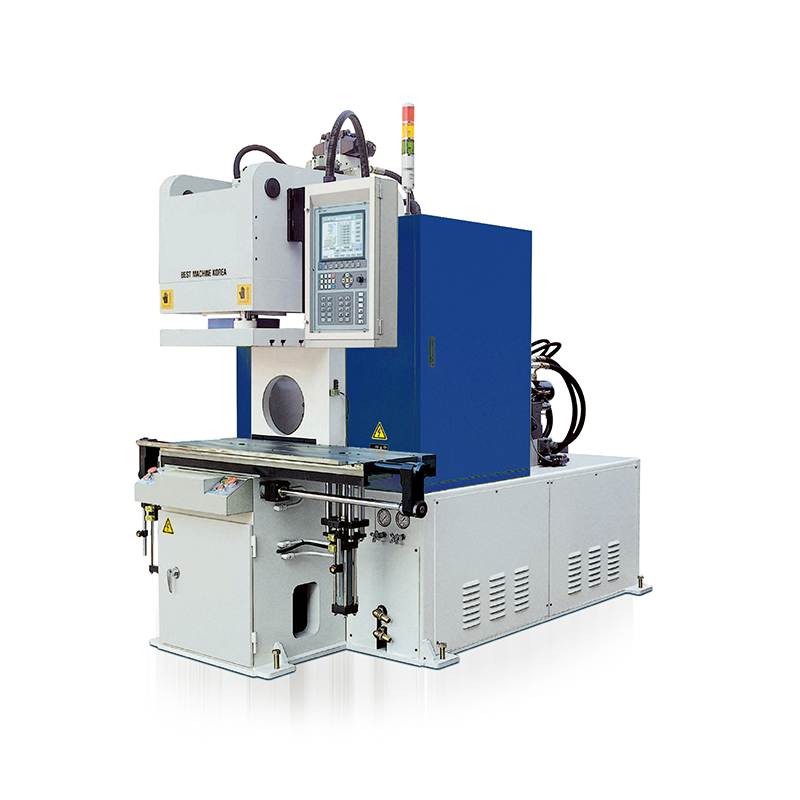

◆ Features VCD-P(SL)
- · Vertical clamping, horizontal injection type. (clamp supported by C-type frame)
- · One or two molds can be accommodated
- · High sensibility mold protection.
- · Proportional control by clamp pressure sensor.
- · Proportional back pressure control.
- · 10.4″Color TFT LCD provided.
- · Left-right Slide Table.
◆ Die Plate Size VCD-P
| VCD-35P | VCD-55P | VCD-100P | VCD-150P | VCD-220P | VCD-300P | |
|---|---|---|---|---|---|---|
| A | 360 | 500 | 550 | 650 | 760 | 850 |
| B | 450 | 380 | 400 | 470 | 570 | 680 |
.gif)
◆ Die Plate Size VCD-P(SL)
| VCD-35P(SL) | VCD-55P(SL) | VCD-100P(SL) | VCD-150P(SL) | VCD-220P(SL) | VCD-300P(SL) | |
|---|---|---|---|---|---|---|
| A | 900 | 1000 | 1100 | 1300 | 1500 | 1800 |
| B | 360 | 380 | 400 | 470 | 570 | 650 |
| C | 450 | 500 | 550 | 650 | 760 | 850 |
_2.gif)
| Item | Screw Type | Screw Diameter | Injection Pressure | Injection Capacity | Injection Weight (PS) | Injection Rate | Injection Stroke | Screw Speed |
|---|---|---|---|---|---|---|---|---|
| Unit | mm | kg/㎠ | ㎠ | g | ㎤/s | m | r.p.m | |
| VCD35P / VCD-35P(SL) | S | 18 | 3500 | 27 | 23 | 34 | 110 | 0-300 |
| A | 22 | 2750 | 41 | 36 | 52 | |||
| B | 25 | 2150 | 53 | 46 | 68 | |||
| VCD55P / VCD-55P(SL) | S | 25 | 3200 | 61 | 53 | 57 | 125 | 0-300 |
| A | 28 | 2500 | 76 | 67 | 72 | |||
| B | 32 | 2000 | 100 | 88 | 94 | |||
| VCD100P / VCD-100P(SL) | S | 28 | 2950 | 92 | 86 | 83 | 150 | 0-300 |
| A | 32 | 2250 | 120 | 112 | 108 | |||
| B | 36 | 1780 | 151 | 141 | 136 | |||
| VCD150P / VCD-150P(SL) | S | 40 | 2560 | 251 | 221 | 118 | 200 | 0-270 |
| A | 45 | 2000 | 318 | 281 | 149 | |||
| B | 50 | 1630 | 392 | 346 | 185 | |||
| VCD200P / VCD-220P(SL) | S | 45 | 2400 | 397 | 350 | 144 | 250 | 0-250 |
| A | 50 | 1950 | 490 | 433 | 177 | |||
| B | 55 | 1600 | 593 | 524 | 215 | |||
| VCD300P / VCD300P(SL) | S | 50 | 2300 | 539 | 476 | 181 | 275 | 0-200 |
| A | 55 | 1900 | 653 | 577 | 219 | |||
| B | 60 | 1570 | 777 | 686 | 260 |
| Item | Clamping Force | Clamping Stroke | Mold Thickness (Min) | Maximum Daylight | Nozzle Center High ('P' Ttpe) | Ejector Force | Ejector Stroke |
|---|---|---|---|---|---|---|---|
| Unit | ton | mm | mm | mm | mm | ton | mm |
| VCD35P / VCD-35P(SL) | 35 | 200 | 200 | 400 | 130 | 1.5 | 75 |
| VCD 55P / VCD-55P(SL) | 55 | 250 | 200 | 450 | 150 | 2.7 | 75 |
| VCD100P / VCD-100P(SL) | 100 | 300 | 200 | 500 | 150 | 2.7 | 75 |
| VCD150P / VCD-150P(SL) | 150 | 500 | 300 | 800 | 150 | 4.3 | 150 |
| VCD220P / VCD-220P(SL) | 220 | 500 | 350 | 850 | 200 | 4.3 | 175 |
| VCD300P / VCD-300P(SL) | 300 | 550 | 350 | 900 | 250 | 7 | 175 |
| Item | Total wattage | Motor Capacity | Heater Capacity | Machine Dimension(L×W×H) | Oil Tank Capacity | Machine Weight |
|---|---|---|---|---|---|---|
| Unit | kw | kw | kw | m | ℓ | ton |
| VCD35P / VCD-35P(SL) | 28.7 | 14.7 | 4 | 3.1x2.1x2.0 | 150 | 5 |
| VCD 55P / VCD-55P(SL) | 23.7 | 18.7 | 5 | 3.4x2.2x2.2 | 250 | 7.5 |
| VCD100P / VCD-100P(SL) | 28.7 | 22.7 | 6 | 3.6x2.4x2.4 | 300 | 9 |
| VCD150P / VCD-150P(SL) | 33.7 | 26.7 | 7 | 4.1x2.8x2.8 | 400 | 12 |
| VCD220P / VCD-220P(SL) | 42 | 33 | 9 | 4.5x3.2x3.1 | 500 | 15 |
| VCD300P / VCD-300P(SL) | 44 | 33 | 11 | 5.2x3.7x3.5 | 600 | 19 |
