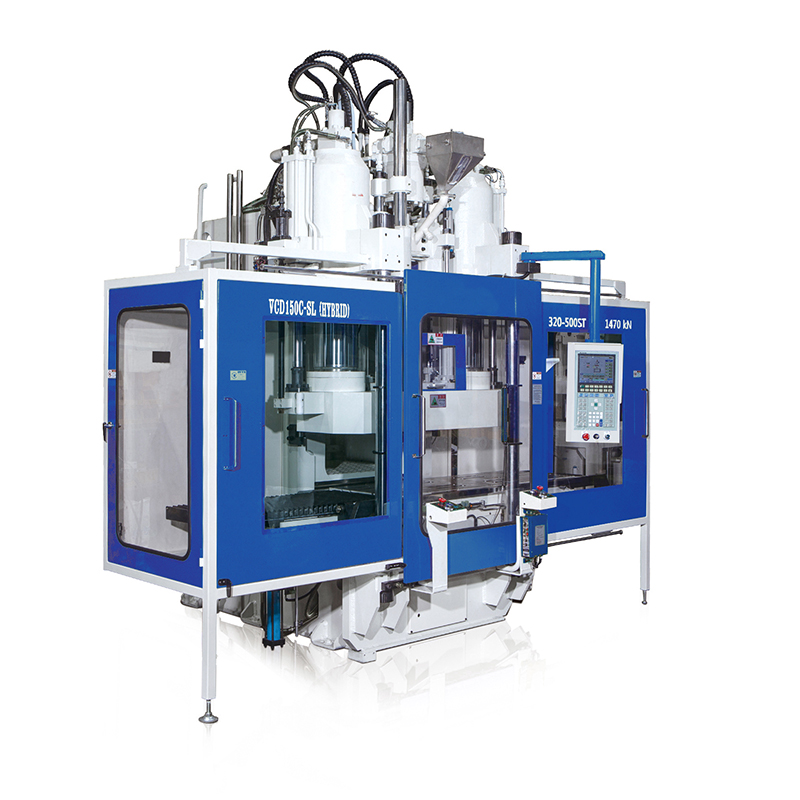

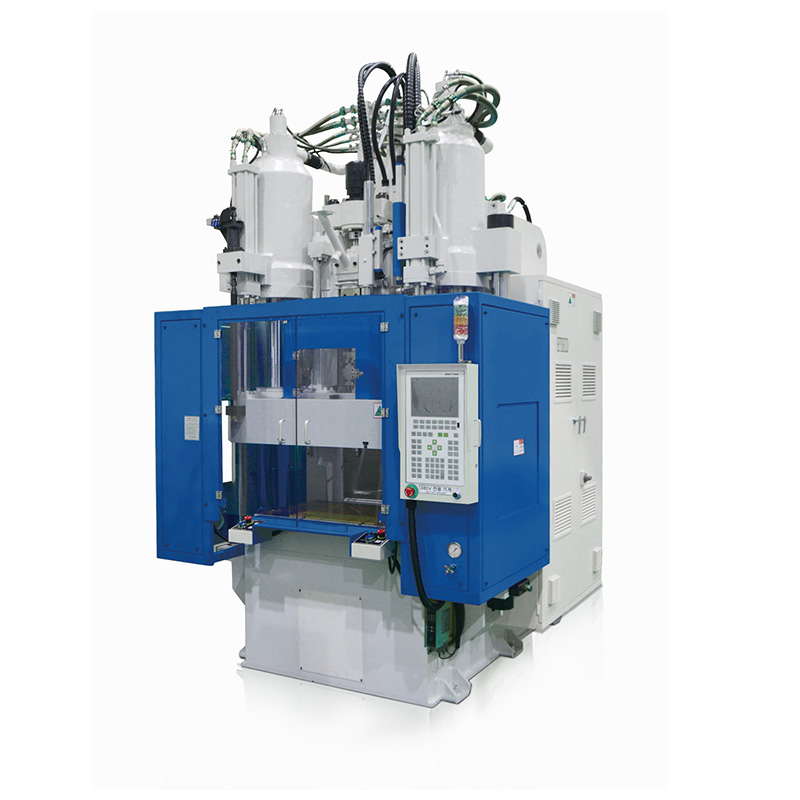

VCD-C(SL)

EDIS-TG Series

Toggle Shape Method
70 ~ 650w

EDIS-DL Series

DIRECT-LOCKING Shape Method
900 DL ~ 3000 DL

Vertical Injection Machine

Table Rotary vertical Injection Machine
General Vertical Injector Machine

Vertical/Horizontal Injection Machine

Table Rotary Vertical/Horizontal Injector Machine
General vertical/horizontal Injection Machine

Double Injection Machine

Double Underwater Injection Machine
TWO Color Injection Machine
Special Injection Machine
Table Rotary Vertical/Horizontal Injector Machine
Vertical double Injector Machine
General Vertical Injector Machine

Controller Systems

Easy operation and precise control
Next-generation controller, iMPACT 7200T

Precision Injection available with a next-generation new controller, guarantees high-performance, precision control and safety.

Characteristic

  • ·Touch screen controller
  • ·12.1" TFT True Color LCD
  • ·User interface enhancement (touch and keyboard at the same time)
  • ·USB memory-molding memory, screen capture, program download available
  • ·User level by password
  • ·Injection speed graph and production data comparison graph display
  • ·200 internal mold data
  • ·500 external storage of mold data (optional)
  • ·Providing experienced communication protocol for integrated management of Injection

Operation Monitor

  • Operation progress display temperature, pressure display operation
  • Temperature status display machine operation screen display
  • Display of various location status
  • Injection 5 stages, holding pressure 3 stages
  • High-speed Injection function using accumulator
  • Control cushion by selecting the Injection distance/time/time + distance

Injection

  • Operation progress display temperature, pressure display operation
  • Temperature status display machine operation screen display
  • Display of various location status
  • Injection 5 stages, holding pressure 3 stages
  • High-speed Injection function using accumulator
  • Control cushion by selecting the Injection distance/time/time + distance

Metering

  • 5-step weighing control and back pressure control
  • Anti-pollution selectable before/after weighing automatic purging possible
  • Manual back pressure function

Temperature

Auto PID Temperature Control

Target Temperature Realiztion

  • Operation progress display temperature, pressure display operation
  • Temperature status display machine operation screen display
  • Display of various location status
  • Injection 5 stages, holding pressure 3 stages
  • Control cushion by selecting the Injection
    distance/time/time + distance
  • High-speed Injection possible using accumulator

Ejector

  • Controlling Ejector forward/reverse 2-stage
  • Controlling Ejector operation basic / continuous / standby selection
  • Air blow function

Alam

  • Alarm history storage function
  • Save alarm time and release time
  • Save up to 200 latest alarm history

SPC

  • Saving Injection data related to quality every time one process is completed
  • Save up to 200 SPC data
  • SPC data saving function to the last 200 USB memory

series

◆ Features

◆ Die Plate Size(VCD-C)

VCD-80C VCD-100C VCD-120C VCD-150C VCD-200C VCD-250C VCD-300C VCD-400C VCD-450C VCD-500C
A 880 920 1000 1090 1250 1400 1530 1750 1880 2000
B 480 490 530 580 650 750 800 950 1000 1070
Check it out using the slides

◆ Die Plate Size(VCD-C(SL))

VCD-80C(SL) VCD-100C(SL) VCD-120C(SL) VCD-150C(SL) VCD-200C(SL) VCD-250C(SL) VCD-300C(SL) VCD-400C(SL) VCD-450C(SL) VCD-500C(SL)
A 1400 1440 1570 1700 1950 2200 2400 2700 2900 3100
B 460 490 530 580 650 750 800 950 1000 1070
C 780 850 920 1000 1110 1280 1400 1650 1750 1850
Check it out using the slides
◆ [Specification] Injection Unit
Item Screw Type Screw Diameter Injection Pressure Injection Capacity Injection Weight (PS) Injection Rate Injection Stroke Screw Speed
Unit mm kg/㎠ ㎠ g ㎤/s m r.p.m
VCD-80C (SL) S 28 2950 83 73 72 135 0-300
A 32 2600 108 95 93
B 36 2250 137 121 117
VCD-100C (SL) S 32 2650 120 106 94 150 0-300
A 36 2400 152 134 120
B 40 2150 188 166 146
VCD-120C (SL) S 36 2810 177 157 123 175 0-300
A 40 2430 219 194 152
B 45 2030 278 245 192
VCD-150C (SL) S 40 2550 251 222 136 200 0-300
A 45 2200 318 281 173
B 50 1850 392 347 213
VCD-200C (SL) S 45 2400 357 316 143 225 0-270
A 50 2070 441 390 177
B 55 1700 534 472 214
VCD-250C (SL) S 45 2300 357 316 158 225 0-270
A 50 2000 441 390 185
B 55 1650 534 472 209
VCD-300C (SL) S 50 2250 490 433 165 250 0-250
A 55 1850 593 524 210
B 60 1550 706 624 245
VCD-400C (SL) S 55 2100 593 524 195 250 0-250
A 60 1750 706 624 235
B 65 1450 829 733 271
VCD-450C (SL) S 60 1970 777 687 232 275 0-250
A 65 1650 912 806 270
B 70 1350 1058 935 315
VCD-500C (SL) S 65 1750 912 806 285 275 0-200
A 70 1420 1058 935 305
B 75 1200 1214 1073 340
VCD-600C (SL) S 45 2070 238 210 173 200 0-200
A 70 2010 1262 1136 441
B 80 1760 1649 1484 576
Check it out using the slides
◆ [Specification] Clamping Unit
Item Clamping Force Mold Thickness (Min) Clamping Stroke Maximum Daylight Ejector Force Ejector Stroke
Unit ton mm mm mm ton mm
VCD-80C (SL) 80 200 250 450 2.2 100
VCD-100C (SL) 100 250 300 550 2.7 100
VCD-120C (SL) 120 300 350 650 2.7 150
VCD-150C (SL) 150 350 500 850 2.7 150
VCD-200C (SL) 200 350 500 850 4 150
VCD-250C (SL) 250 350 550 900 4 150
VCD-300C (SL) 300 350 550 900 7 150
VCD-400C (SL) 400 400 600 1000 11 150
VCD-450C (SL) 450 400 600 1000 11 150
VCD-500C (SL) 500 450 650 1100 11 200
VCD-600C (SL) 500 450 650 1100 11 200
Check it out using the slides
◆ [Specification] Common
Item Total wattage Server Motor Capacity Server Motor Capacity Heater Capacity Machine Dimension
(L×W×H)		 Oil Tank Capacity Machine Weight
Unit kw kw kw kw m ℓ ton
VCD-80C (SL) 20.2 11 3.7 5.5 1.65x2.5x2.6
(3x2.1x2.6)		 6
VCD-100C (SL) 26.2 15 3.7 7.5 1.85x2.6x2.7
(3.1x2.2x2.7)		 200 7.5
VCD-120C (SL) 29.2 18 3.7 7.5 1.85x2.7x2.9
(3.3x2.4x2.9)		 400 10.2
VCD-150C (SL) 36.2 23 3.7 9.5 1.85x2.8x3.2
(3.7x2.6x4.2)		 400 12.5
VCD-200C (SL) 42.5 28 5 9.5 2.0x2.8x3.4
(4.2x3x3.4)		 600 18
VCD-250C (SL) 45.5 28 5 12.5 2.0x2.9x3.4
(4.7x3.4x3.4)		 600 21
VCD-300C (SL) 45.5 28 5 12.5 2.1x3.0x3.5
(5.1x3.6x3.5)		 600 23
VCD-400C (SL) 57 37 5 15 2.2x3.0x3.7
(6x4.3x3.7)		 800 30
VCD-450C (SL) 59 37 5 17 2.2x3.1x3.9
(6.3x4.5x3.9)		 800 35
VCD-500C (SL) 69 45 5 19 2.4x3.5x4.2
(6.8x4.8x4.2)		 800 42
VCD-600C (SL) 69 45 5 19 2.4x3.5x4.2
(6.8x4.8x4.2)		 800 42
Check it out using the slides
